POS keyboard

FOB Reference Price:Get Latest Price
10 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Style:
programmable keyboard
Type:
Wired
Interface Type:
PS/2
Products Status:
Stock
Application:
POS terminal
Brand Name:
CITAQ
Model Number:
KB-P81
Place of Origin:
Guangdong, China (Mainland)
Color:
Black6U
Supply Ability
Supply Ability:
2000 Unit/Units per Month
Packaging & Delivery
Packaging Details
export carton
Port
Shantou, China
Lead Time :
5 days

Specifications

81key fully programmable keyboard with MSR

Programmable Keys
81 keys, membrane



Capacity Per Key
1 to 255 characters per key



Versatile Programmability
Up to 15 multi-shift levels per key



Magnetic Stripe Reader
3 tracks

Life Cycle ≥ 500,000 operations

Comply with ISO 7812 standards

Card swipe speed 10 – 120 cm/s



OS Supported
MS-DOS, WIN 9X/ME/2000/XP



Languages Supported
English



Power Source
Input Voltage 5V DC, +/- 10%

Current ≤150mA





Electrical



Insulation resistance >50MΩ



Contact resistance   < 1KΩ

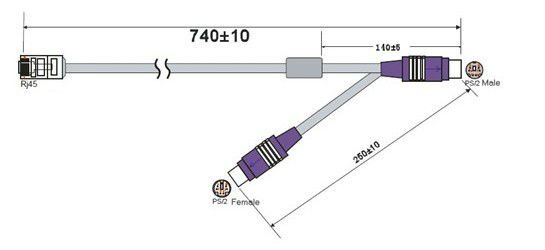

Interface
6 pin mini DIN PS/2 connector








RJ45 Interface








1 EXT keyboard data



2 VCC+5V



3 Shell ground



4 Ground



5 EXT Keyboard clock



6 Keyboard data



7 Keyboard clock



8 No Connection







Key Switches
MTBF: minimum 10 million operations per key



Total Travel 4.0 – 0.5mm



Pre-travel   2.3 ± 0.4mm







Data Memory
100 years data retention without additional battery







Dimensions
390mm W x 155mm D x 42mm H







Weight
1.00kg(no cable included)







Applicable Conformity
RoHS Compliance



EMC Class B





Environmental



Operating Temperature 0C - +45C degree



Storage Temperature -20C - +50C degree



Relative Humidity    10% - 90%
